Matrix Sled to Volt® Bracket
€ 96.93
SKU: 000009053
EAN: 8051411192596

Bracket specifically design to grant a stable and vibration-free connection between Volt® Brain and Matrix top stageIn the bundle:
- 1x Volt® Bracket
- 2x M8 screws for connection to Matrix Topstage
- 4x 8/32" x 1/2" screws for Volt® connection
Add to cart
Matrix Sled ULTRA
The Ultra Bundle is a real catch-all solution : All the features of the Matrix Sled Extreme bundled with all the stuff that let you mount your Ronin™2 transforming it in the R2 Sled.In the bundle:
- 1x Micrometric TopStage Vibration free able to be fixed on the upper part as on lower part of the sled
- 1x Matrix Telescopic post with 40mm of diameter. From 530mm (collapsed) to 940mm (fully extended) range
- 1x LCD monitor holder on separate carbon fiber rods
- 1x Exclusive Battery management based on Double Vlock or 3Studs Batteries slots for +12V and +12/+24V operation
- 1x C-Battery with 10x Counterweights to help you balancing heavy setup without increasing too much the sled lenght
- 1x Ronin™2 Plate Adapter for Matrix Sled
- 1x Ronin™2 Battery holder (tilt-able from +90° to -90° - 100mm distance centre-to-centre of 15mm carbon fiber rods)
- 1x Ronin™2 Yaw Locker
- 1x Extended Docking Bracket for a perfect balancing (static and dynamic)
- 1x Vlock or 3Studs Plate with 1/4 and 3/8 threaded holes and Push Pull connectors (fuse protected)
- 1x SmartCAM Horizon with separate Hard case
- 1x Sled Hard Case
Plase Note : DJI Ronin2 not included in this bundle
View products

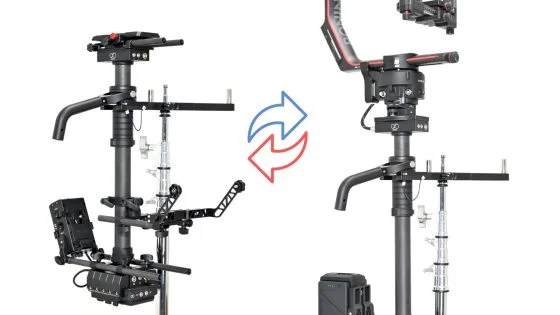

Matrix Sled ULTRA Lite
The Ultra Lite Bundle is another catch-all solution as the Matrix Sled Ultra but based on Matrix Sled Extreme bundled with R2 lite Sled.In the bundle:
- 1x Micrometric TopStage Vibration free able to be fixed on the upper part as on lower part of the sled
- 1x Matrix Telescopic post with 40mm of diameter. From 530mm (collapsed) to 940mm (fully extended) range
- 1x LCD monitor holder on separate carbon fiber rods
- 1x Exclusive Battery management based on Double Vlock or 3Studs Batteries slots for +12V and +12/+24V operation
- 1x C-Battery Vlock or 3 Studs with 10x Counterweights to help you balancing heavy setup without increasing too much the sled lenght
- 1x Ronin™2 Plate Adapter for Matrix Sled
- 1x Ronin™2 Battery holder (tilt-able from +90° to -90° - 100mm distance centre-to-centre of 15mm carbon fiber rods)
- 1x Ronin™2 Yaw Locker
- 1x Extended Docking Bracket for a perfect balancing (static and dynamic)
- 1x Vlock or 3Studs Plate with 1/4 and 3/8 threaded holes and Push Pull connectors (fuse protected)
- 1x R2 Counterweight plate with 10x Counterweights to help balancing heaviest setup when used with or without Ronin™2
- 1x U-Bracket in order to increase the distance of the sled from the arm and giving the possibility to use your preferred monitor on the sled handle
- 1x Sled Hard Case
View products
Matrix Sleds Trolley w/ Customizable Space
€ 533.08
SKU: 000006337
EAN: 8051411191223
- Polypropylene outer case with two compartments
- Shaped Foam on first level to perfectly fit any Matrix Sleds (Chimera sled excluded)
- Cubed foam customizable by the customer on the second level
- Transport handle
- Automatic pressure release valve
- Outer dimensions : 816 x 540 x H306 mm / 32.12 x 21.26 x H12.04 inch
- Operating temperature : -30 / 90°C (-22 / 194°F)
- Weight : 10.2 kg
- IP67 - STANAG 4280 - DEF STAN 81-41 Compliancy)
Add to cart
Matrix Stabilizer Screws kit
€ 25.80
SKU: 000007596
EAN: 8051411191698

Kit of screws for Matrix Sled dovetail made in premium stainless steelIn the kit:
- 2x 1/4" screws
- 2x 3/8" screws
Add to cart
Matrix Standard Rods Bracket
€ 83.02
SKU: 000002388
EAN: 8051411191681

Standard Rods Bracket for Matrix Sled.Designed for Carbon rods with a diameter of 15mm.Center-to-center distance : 100mm
Add to cart
Matrix to Ronin2 Battery Cable (30cm/12in)
€ 162.20
SKU: 000007231
EAN: 8051411192183

DC power cable to interconnect Matrix sled MPX port to DJI® Ronin2® BatteriesCable length 30cm /12"
Add to cart
Matrix to Ronin2 Head Cable (30cm/12in)
€ 162.20
SKU: 000007232
EAN: 8051411192190

DC power cable to interconnect Matrix sled MPX port to DJI® Ronin2® Gimbal headCable length 30cm /12"
Add to cart
Monitor Mount w/Rods (40mm / 1.575″ post)
€ 1,019.86
SKU: 000002537
EAN: 8051411191261

Monitor mount derived from SmartCAM Matrix Extreme Sled
- Lightweight design
- 15mm carbon fiber rods with a distance of 100mm / 3.93" centre-to-centre for uncompromising stability
- ToolFree operation on every adjustment (even on lateral monitor attachment)
- The rods are tilt-able with a custom fast and secure indexing system
- The monitor cage designed for the most common industry standard monitors
- Integrated spirit level
- Made from solid aluminum shot-peened and hard anodized
- Specific for 40mm / 1.575" posts
Check out this Video Manual for quick guide assembly
Add to cart
Monitor Rods with Clamp for 1.37″ post
€ 699.00
SKU: 000009465
EAN: 8051411192695

Monitor rods with clamp designed to fit 1.37" posts.The kit include two 15mm carbon fiber rods with a length of 200mm.The center to center distance between rods is 100mm (Matrix sled standard)
Add to cart
Monitor Rods with Clamp for 1.5″ post
€ 699.00
SKU: 000009067
EAN: 8051411192633

Monitor rods with clamp designed to fit 1.5" posts.The kit include two 15mm carbon fiber rods with a length of 200mm.The center to center distance between rods is 100mm (Matrix sled standard)
Add to cart
Monitor Rods with Clamp for 1.75″ post
€ 699.00
SKU: 000009066
EAN: 8051411192626

Monitor rods with clamp designed to fit 1.75" posts.The kit include two 15mm carbon fiber rods with a length of 200mm.The center to center distance between rods is 100mm (Matrix sled standard)
Add to cart
Monitor Rods with Clamp for 2.00″ post
€ 699.00
SKU: 000009065
EAN: 8051411192619

Monitor rods with clamp designed to fit 2.00" posts.The kit include two 15mm carbon fiber rods with a length of 200mm.The center to center distance between rods is 100mm (Matrix sled standard)
Add to cart
Monitor Rods with Clamp for ARRI Trinity Lower Post
€ 699.00
SKU: 000009672
EAN: 8051411192800

Monitor rods with clamp designed to fit ARRI® Trinity lower post.The kit include two 15mm carbon fiber rods with a length of 200mm.The center to center distance between rods is 100mm (Matrix sled standard)
Add to cart
Monitor Rods with Clamp for Matrix Sleds
€ 528.20
SKU: 000009068
EAN: 8051411192640

Monitor rods with clamp designed to fit Matrix sled posts (1.57" / 40mm)The kit include two 15mm carbon fiber rods with a length of 200mm.The center to center distance between rods is 100mm (Matrix sled standard)
Add to cart
Motor Cable ULTRA
€ 90.46
SKU: 000004513
EAN: 8051411191131

Motor and Drives quality are important....But it is important HOW you transfer the energy from the Drive to the Motor, too
- - Ultra High quality motor cable and connectors with improved current capacity
- - Not flammable coating
- - Long lasting even in harsh evironment
- - Connector area protected against tearing
- - Professional Cinema-Grade Push - Pull connectors
- Length : 1.8meters
- Compatible only with DigiMOTORs MKI and DigiDRIVEs MKII
Add to cart
Official Sport Cap
€ 22.51
SKU: 000004399
EAN: 8051411192572

100% cotton with SmartSystem logo embroideredAdjustable with metal locking
Add to cart
Ronin2 Battery to Alexa S35 24V (100cm/40in)
€ 217.10
SKU: 000009308
EAN: 8051411192701

Cable designed to power from the native voltage of DJI® Ronin2® Battery module the ARRI® Alexa S35 camera.Manufactured with high quality silicone wires for maximum flexibility and current capability protected by external wire mesh.Length : 100cm / 40in
Add to cart
Ronin2 Battery to Alexa XT 24V (100cm/40in)
€ 291.52
SKU: 000009472
EAN: 8051411192718

Cable designed to power from the native voltage of DJI® Ronin2® Battery module the ARRI® XT or old film camera equipped with 2pin Fisher® connector.Manufactured with high quality silicone wires for maximum flexibility and current capability protected by external wire mesh.Length : 100cm / 40in
Add to cart
