Accuracy... redefined

Rightful successor of the original Zen system that established the benchmark for precision and reliability, Zen PRO features an exclusive and advanced temperature control for consistent sensor performance. Discover enhanced stability and accuracy as the Zen Pro redefines your measurement standards.

the precision of Zen Digital level indicator empowered with XTBus communication and a totally new and advanced thermal management for optimal performance.

Enclosed within a case expertly milled from solid aluminum, we've integrated state-of-the-art electronics to deliver the excellence you deserve :

A tiny cube with an edge length of just 5 cm / 2" is all you need to precisely determine the orientation of your sled.

When operating a stabilizer, it is imperative for the operator to maintain unwavering focus on the monitor to ensure precise framing of the subject, as any lapse in attention can result in suboptimal composition. Simultaneously access to additional data, such as roll and pitch information, is invaluable for enhancing shot accuracy.

Traditionally, operators needed to divert their attention from the monitor to assess roll and pitch indicators, risking a disruption in framing precision. This practice was particularly challenging in dynamic environments, where such distractions could compromise the integrity and quality of the shot.

To overcome this challenge, Zen Pro leverages advanced XTBus technology transmitting simultaneously and continuosly critical data, like the standard axes of rotation defined as:

By overlaying this data onto the main monitor display, Zen Pro ensures that the operator has all necessary information in one place, eliminating the need to look away from the live framing.

Roll - Tilt - Pan

in conjunction with

Side 2 Side Acceleration

The SM7 PRO 3G monitor lets users customize on-screen parameters, including displayed axes, element positions, operational limits, and refresh rate, ensuring optimal performance and tailored interface settings.

EVERYTHING AT A GLANCE

INNOVATIVE APPROACH

Zen PRO is a pioneering unit that provides a temperature-controlled environment for MEMs sensors, setting a new industry standard for stability and reliability

Innovation isn't a mere cut-and-paste process. It demands rigorous study, discipline, and deep comprehension of underlying mechanisms. This approach empowers individuals to push boundaries and drive transformative progress.

INDEPENDENCE FOR MAXIMUM ACCURACY

Zen Pro, as a separate unit, can be mounted rigidly near the sled's central post, effectively eliminating vibrations from the monitor mount and ensuring accurate readings independently by the monitor mount.

The first digital level indicators allowed units to be mounted directly on, or integrated into, monitors. However, precision relied on the monitor mount's stiffness: vibrations, loose connections, or a significant distance between the monitor and the central post for balancing could lead to inaccurate readings.

With the introduction of XTBus technology, connecting the Zen PRO to your PC or Mac for firmware updates requires an XTDongle, which is not included with the Zen PRO.

If you own the SM7 PRO 3G, you're covered!

The SM7 PRO 3G and Zen PRO work seamlessly together, making your upgrade hassle-free.

Simply connect everything and launch Burner to update your XTBus devices with the latest firmware.

ALWAYS UPDATED

DIMENSIONS AND TECH SPECS

DC Voltage Range
9VDC - 34VDC

Weight
120gr / 0.26lbs

Power Consumption
7.2W max at Startup / < 1W nominal

Working Temperature
-10°C～+45°C

Working humidity
10%～80%

Check it out the original Zen

Don't have an XTBus compatible device but eager to explore Zen's capabilities?

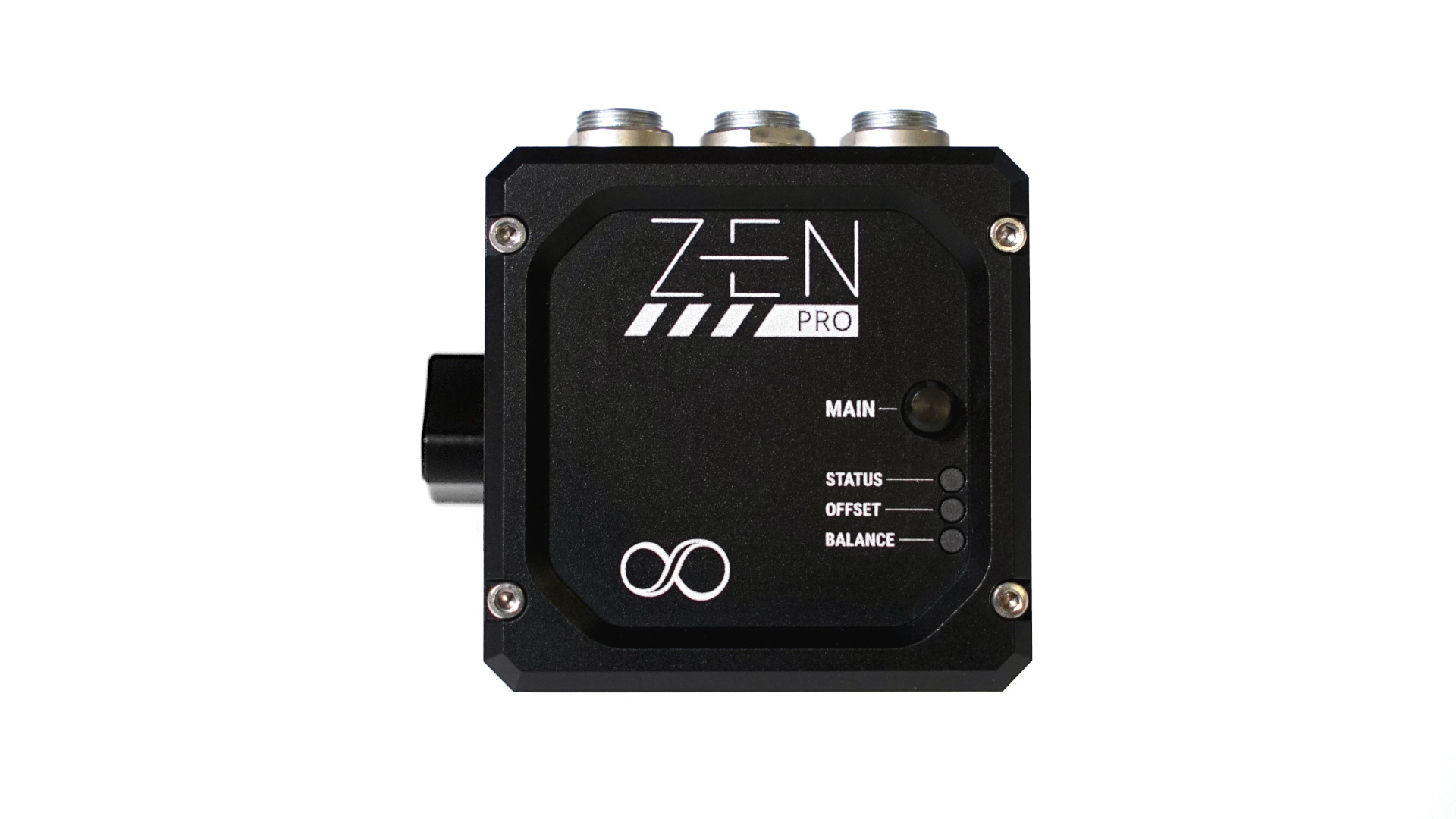

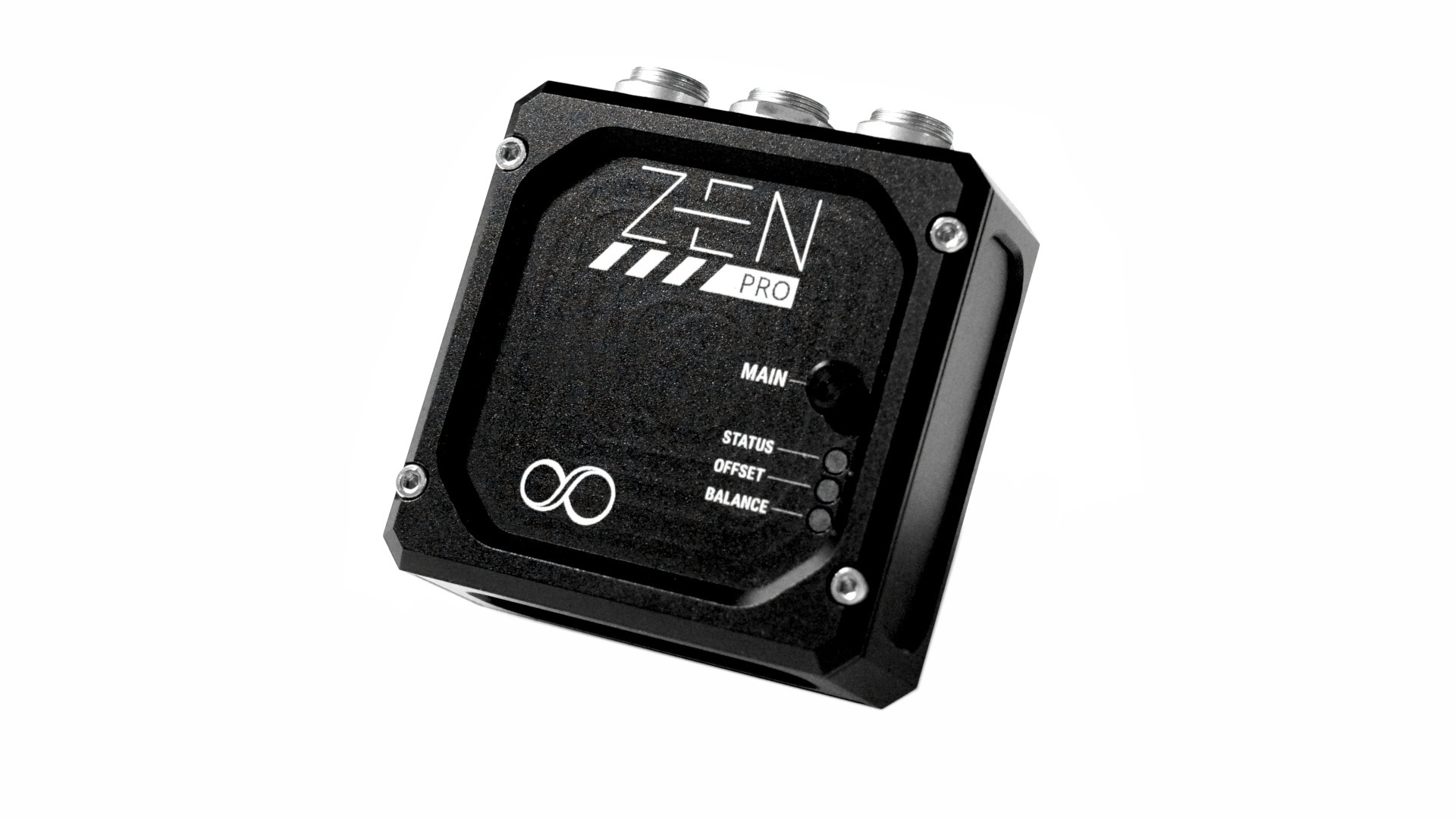

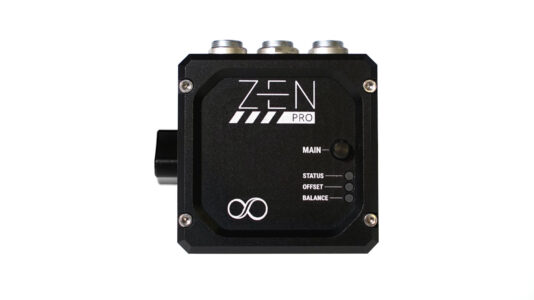

SmartCAM Zen PRO Core

Name: SmartCAM Zen PRO Core
SKU: 000009778
Availability: InStock

€ 719.74

EURO Price includes local VAT for European customers without a valid VAT number.
Foreign currencies are already tax-free. Customs fees not included.

SKU: 000009778
EAN: 8051411193026

Introducing our state-of-the-art Multi-Core CPU 6-Sensor Multi-Axis Digital Level Indicator, engineered for precision and reliability in various applications. This advanced device features a temperature-stabilized system, ensuring consistent and accurate readings under diverse environmental conditions.

Designed for versatility, the digital level indicator can be powered either through a robust 2-pin push-pull connector or seamlessly integrated into a daisy chain configuration via the XT-BUS, providing flexible connectivity options to suit your setup.

Encased in a durable, high-quality shell, the housing is meticulously milled from solid aluminum, then shot-peened and hard anodized for enhanced strength and resistance to wear and corrosion. This rugged construction not only protects the internal components but also ensures long-lasting performance, making it an ideal choice for demanding industrial environments or precision engineering tasks.

Experience the perfect blend of innovation, durability, and functionality with our multi-axis digital level indicator.

In the box

SmartCAM ZenPRO Core
1x XT-BUS Patch Cable 40cm / 15.8″

NOTE

The device can be used only in combination with a display XT-BUS compatible like SM7-PRO-3G

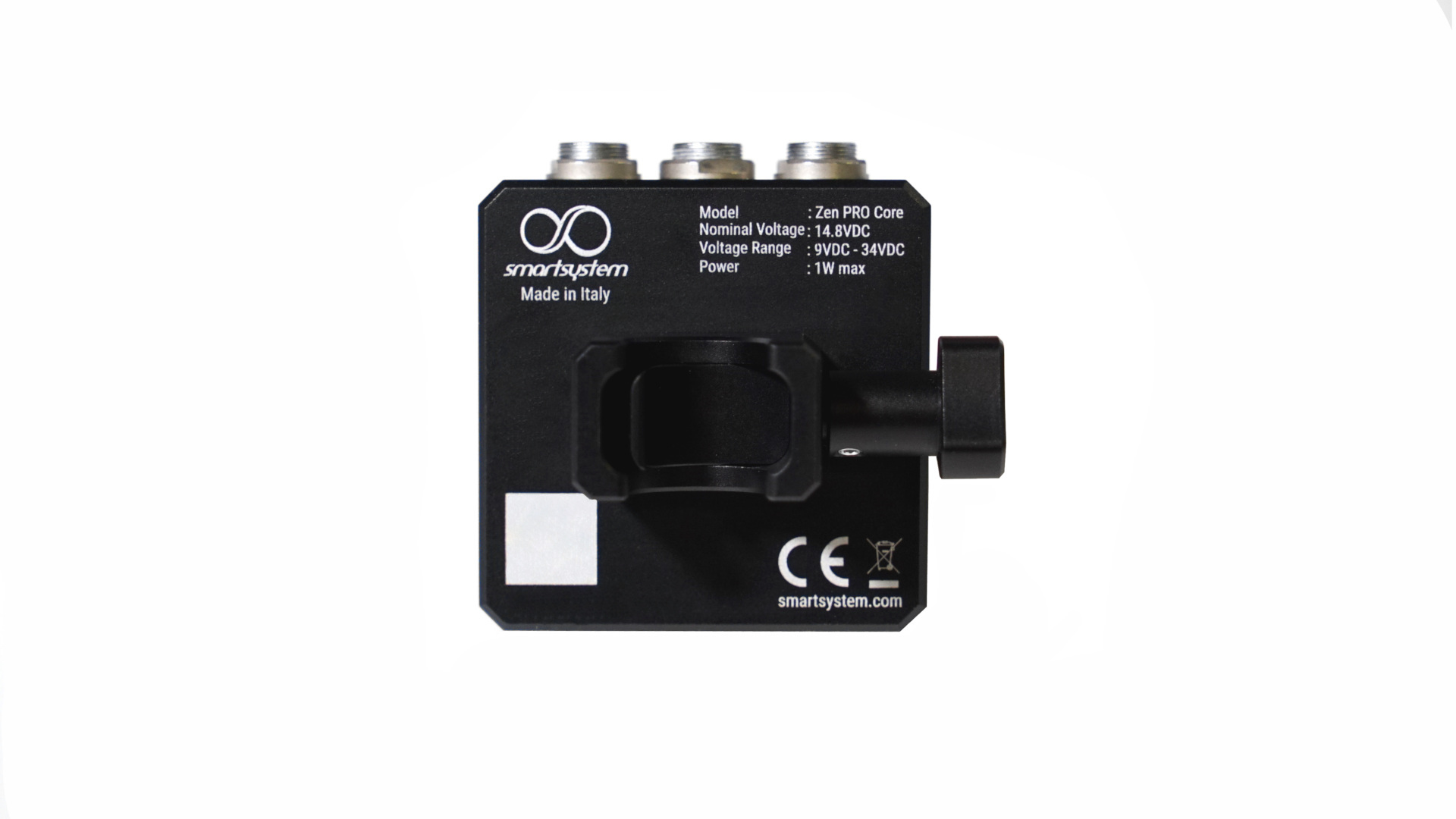

The Zen Pro Core is equipped with a 15mm rod adapter. If you have different rod sizes, ensure a perfect fit with our additional Mini Clamps, available for 16mm (0.625 inches) and 19mm (0.75 inches) rods.

In stock (can be backordered)

SmartCAM Zen PRO Core

In the box

NOTE

Related products

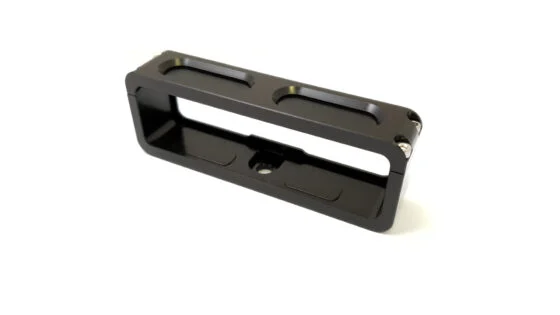

SmartCAM Zen Cage Rev.2

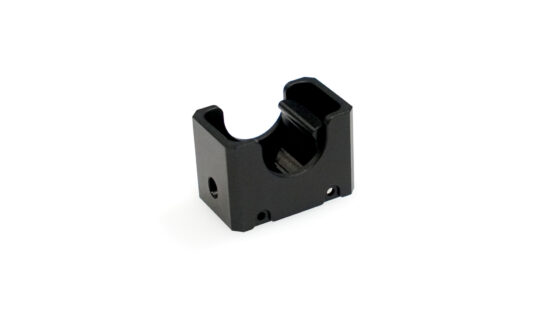

SmartCAM Zen PRO Mini Clamp 19mm/.75in
