Completely Fanless Design with Aluminum case

Ultra High Brightness up to

7" ruggedized monitor designed for stabilizer use

3200nits

LCD with Glass protection and AR coating

compliant

Automatic brightness adjustment with embedded light sensor

Thanks to the possibility to apply logs to Rec 709 conversion LUTs, including Log-C, C-log,
S-log2, S-log3, V-log, J-log1, RedLogFilm, is it possible to import your own
3DLUTs via USB stick, for a complete control over the image

LUTs on board

Clearly visible under Sunlight

Equipped with a 7" Ultra Hyper Bright LCD panel with an outstanding brightness
of up to 3200 nits and a native resolution of 1920 x 1200 with a contrast ratio of 1200:1

OnScreen TALLY

The presence of dedicated 3 pin push-pull connector,
gives to the user the possibility to visualize directly on-screen the TALLY signal
with two dedicated and separated channels (RED / GREEN)

3G-SDI Full Support

1x up to 3G-SDI input (SMPTE 425A / SMTPE 425B)
1x Buffered Video Output

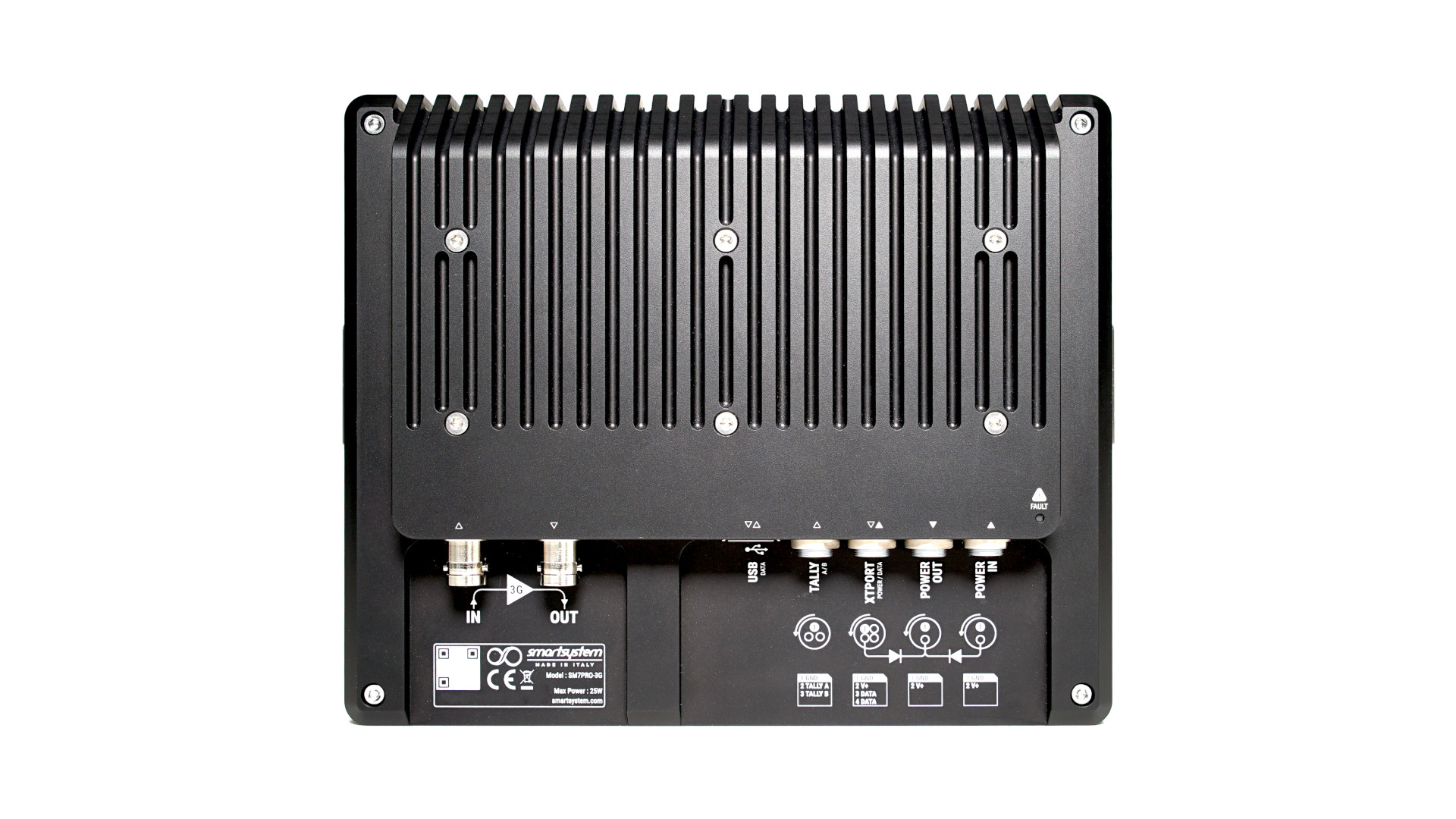

Data Ports

1x XTPort for XTBus communication
1x USB port for LUTs uploads
1x Tally port

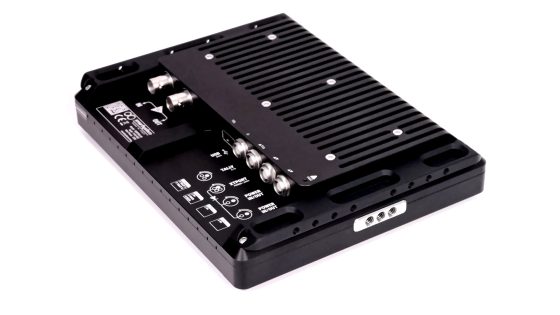

Power Options

1x 2poles Push-Pull connector with a voltage range from 9V to 34V
1x 2poles Push-Pull connector as power out
1x 4poles Push-Pull connector as XTPort for power and data inputs
1x Vlock or ThreeStuds Battery plate (optional)

One communication protocol to rule them all

Motors

Sensors

Gauges

Batteries

Drives

Monitors

... and much more

XTBus offer endless possibilities to interconnect current and future products in a smart way

All the "nits" you need... when and if you need them

3200nits of maximum brightness could be too much for indoor shootings but definitely a must for outdoor ones...

... but how to deal on mixed environment?

The answer is the
Adaptive Backlight Management
thanks to a dedicated and integrated
light sensor

NOTE: A.B.M. can be assigned to every button (F8 in the video example). Once enabled, the backlight is adaptively adjusted to match the amount of ambient light

But you will never know when it will
during a shot...

“ Can't rain all the time ”

cit. The Crow (2014)

... for this reason we designed SM7 PRO 3G
to be able to manage sudden water drops
with dedicated "paths"

It is what we call
Water Managed System

NOTE: The water path take advantage of the gravity to let water flow outside the monitor via tiny slots on bottom of the case. This can happen only if the monitor is in upright position.

Built from scratch .... under every aspect

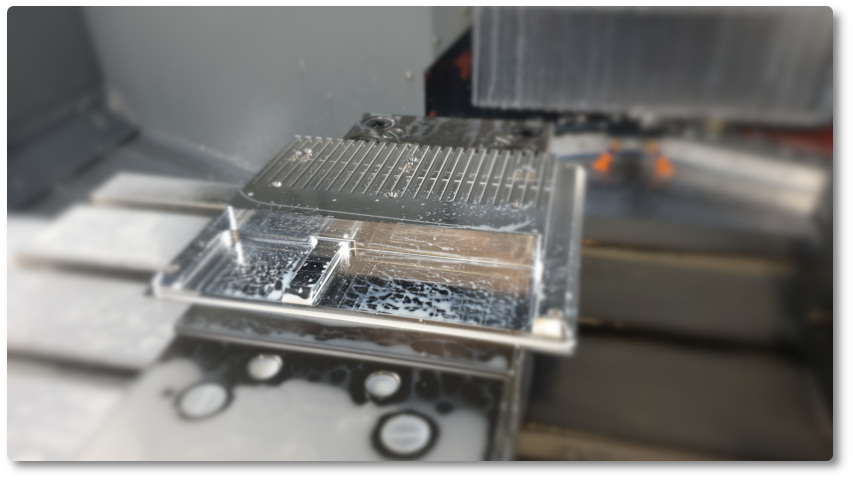

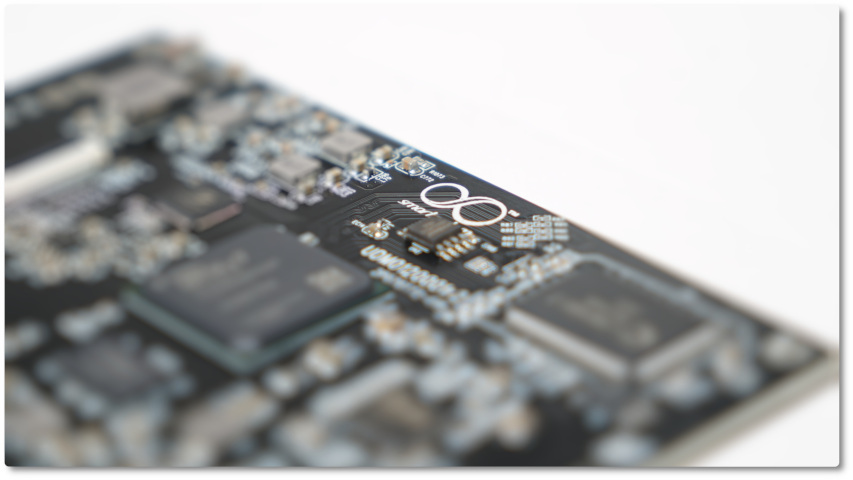

From PCB design up to aluminum case milled from solid aluminum, passing by software and firmware
SM7 PRO 3G is definitely "made by SmartSystem"

Dimensions

DC Voltage Range
9VDC - 34VDC

Additional Technical Specifications

Weight
1.3kg / 2.7lbs

Power Consumption
<= 25W

Working Temperature
-20°C～+40°C

Working humidity
10%～80%

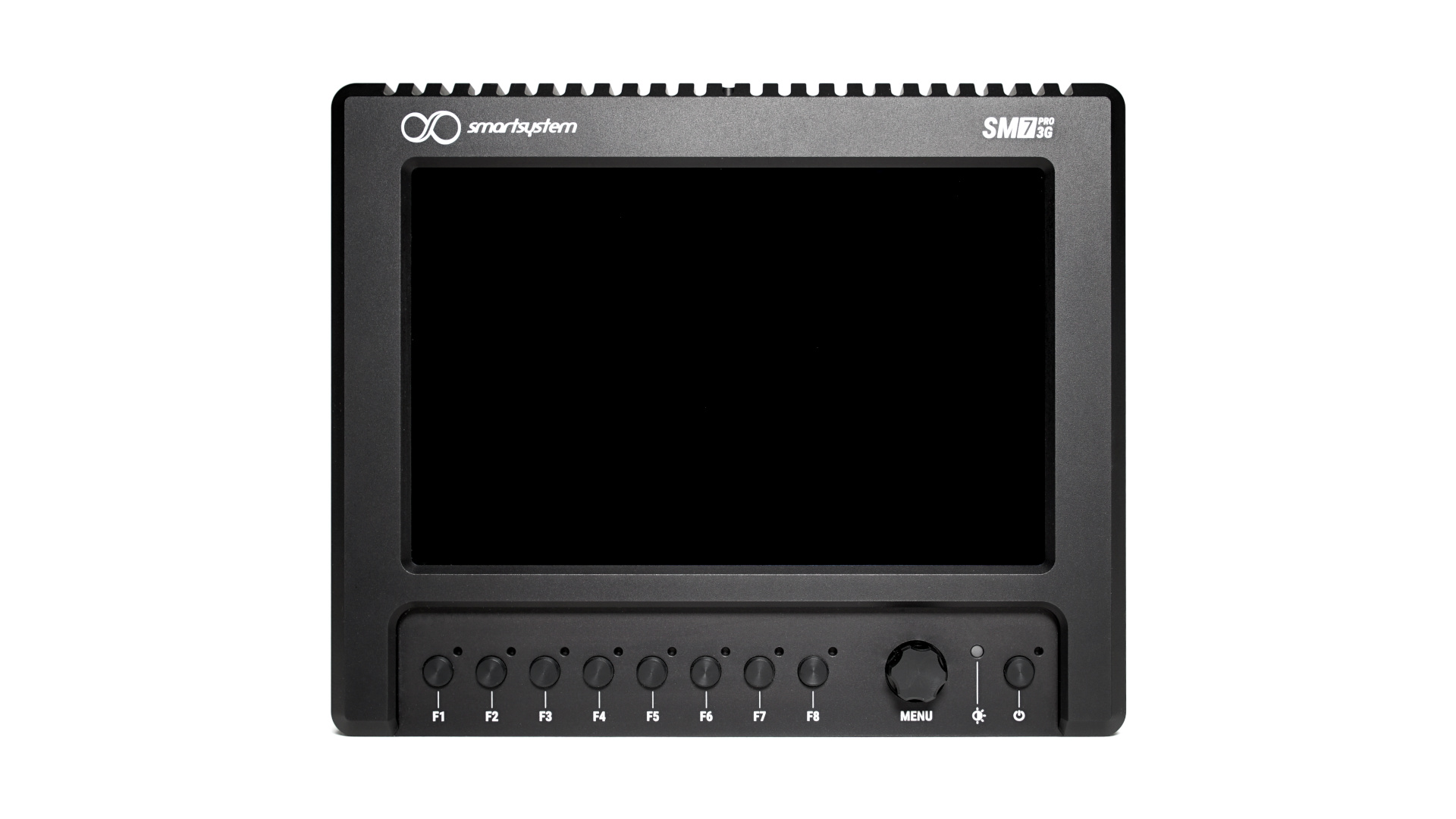

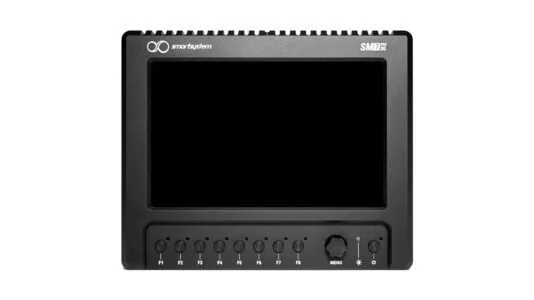

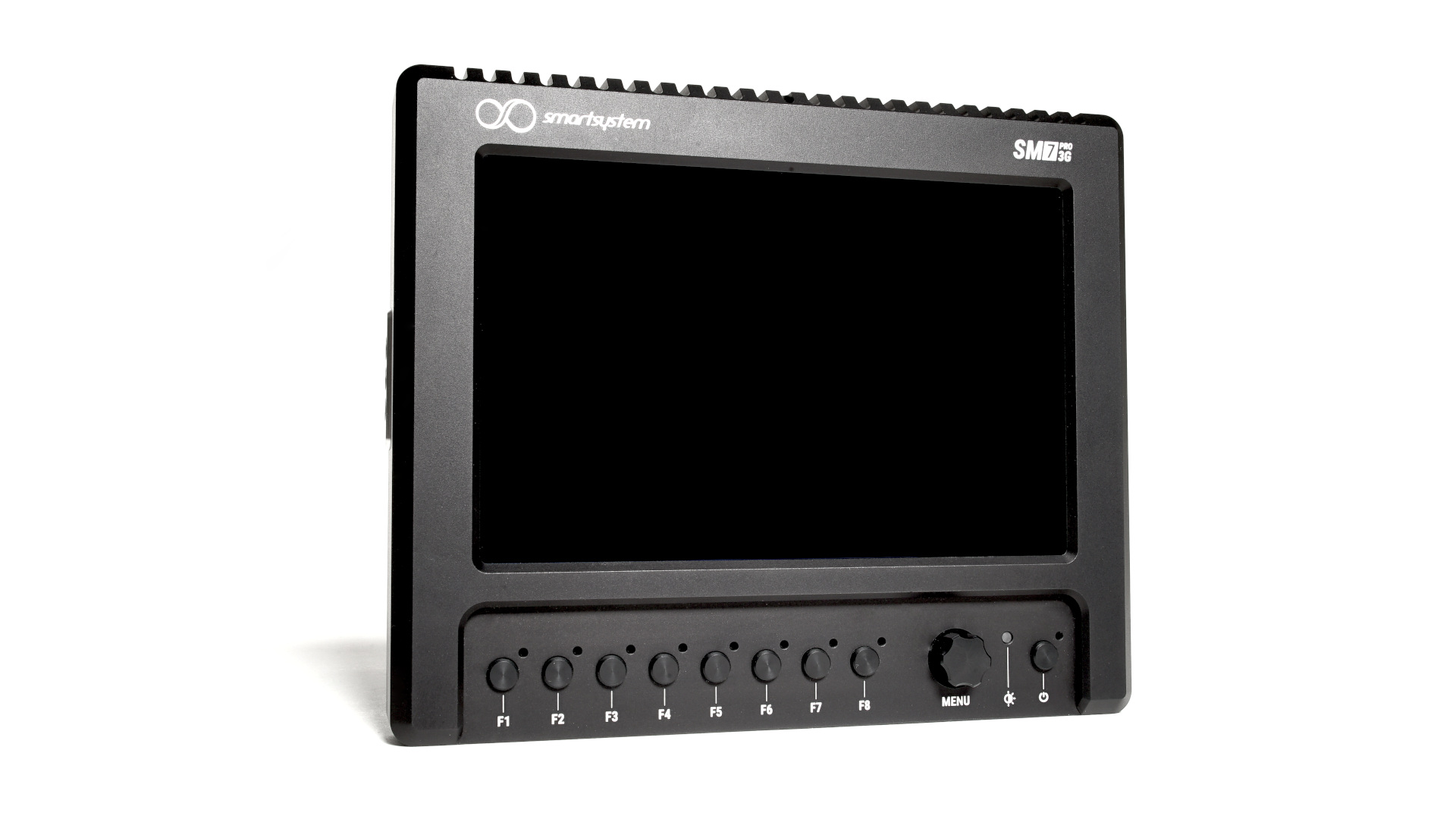

SmartCAM Monitor SM7-PRO-3G

Name: SmartCAM Monitor SM7-PRO-3G
SKU: 000009559
Price: 2739.95 USD
Availability: InStock

US $ 2,739.95

EURO Price includes local VAT for European customers without a valid VAT number.
Foreign currencies are already tax-free. Customs fees not included.

SKU: 000009559
EAN: 8051411192862

7″ 3G-SDI Hyper Bright monitor with up to 3200 nits.
IPS screen with protection glass and special anti-reflective coating.
Adaptive Backlight Management to always offer the best brightness based on outer environment.
Specifically engineered to suit all the physical requirements by modern stabilizers.
Perfectly balanced on its CG fixture (lateral mount / central hole).
Special design able to address rain and water on dedicated paths.
XTPort for fast data communication with other peripherals.

Case completely milled from solid aluminum, shot-peened and hard anodized

IN THE BOX:

1x SM7 PRO 3G 7″ monitor / 3200 nits
1x 2pin-2pin push-pull connector
1x Resin case
1x Neoprene softshell

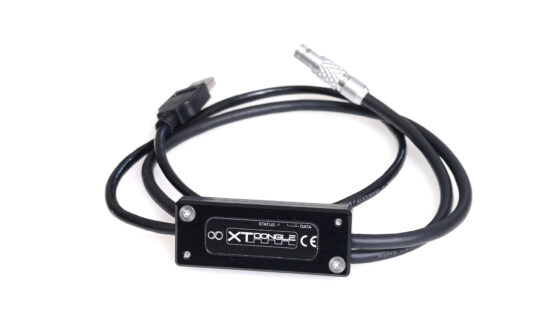

1x USB XTDongle for PC/MAC connection

In stock (can be backordered)

SmartCAM Monitor SM7-PRO-3G

Related products

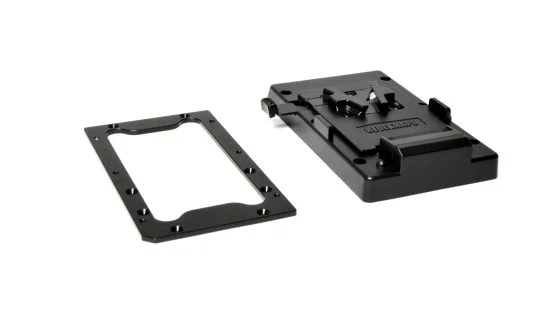

Vlock Plate for SM7-PRO-3G

3Studs Plate for SM7-PRO-3G

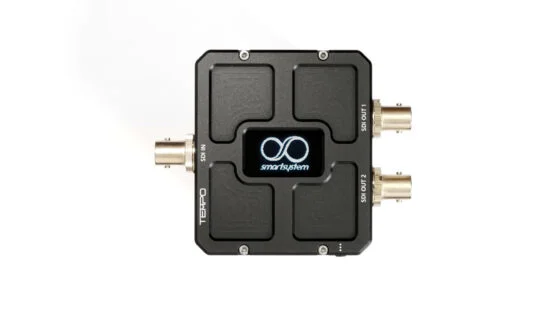

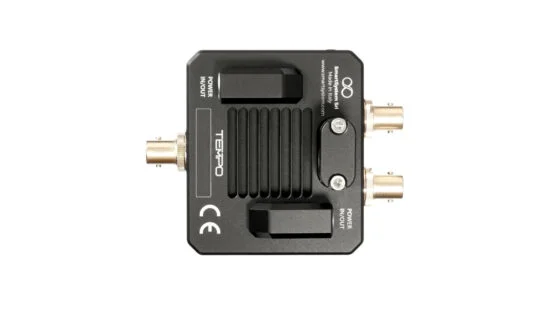

SmartCAM Tempo

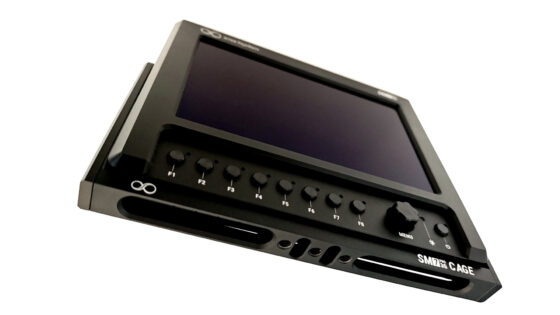

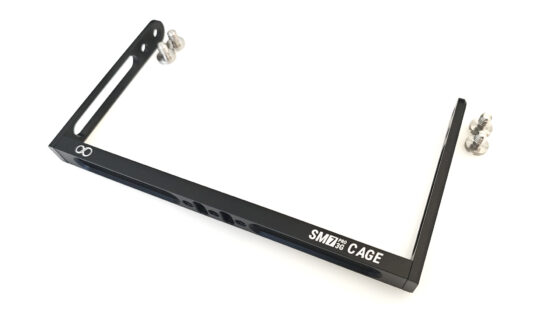

SM7-PRO-3G Cage
