Designed, engineered, manufactured and hand built exclusively in Italy

There are various Aluminum
alloys out there but only
AL7075 Ergal alloy, the most
performing one, was used for
Arm X1

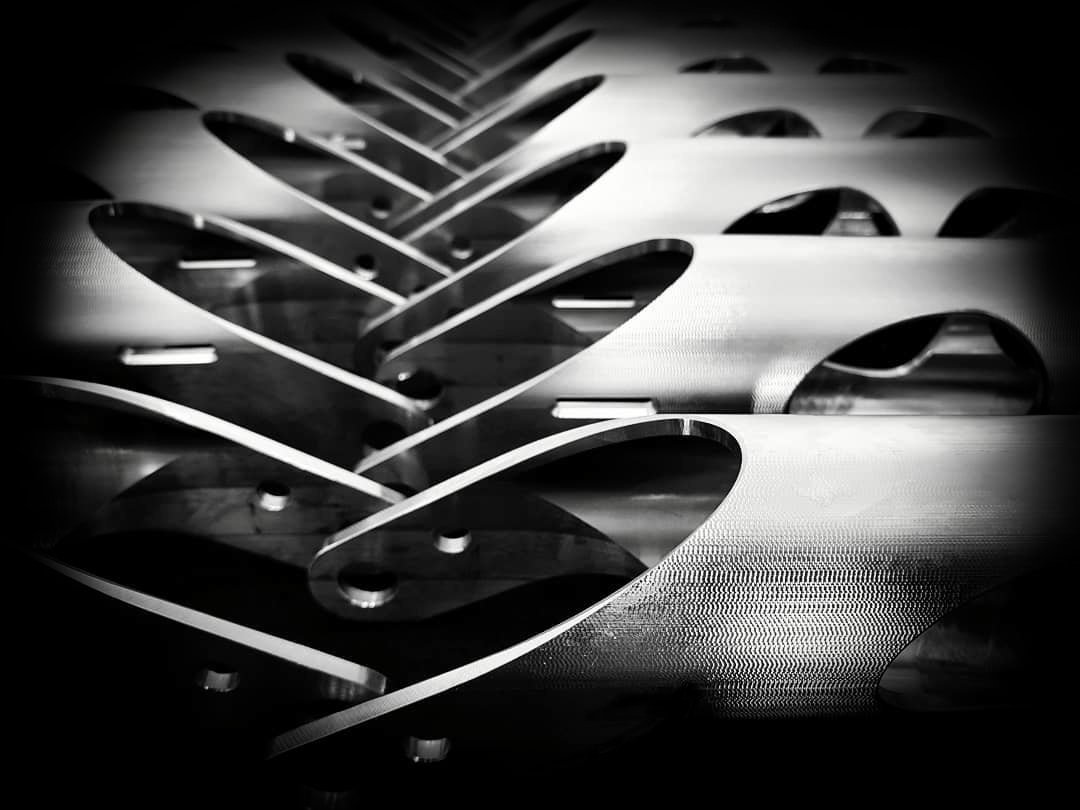

Every single part of Arm X1 is
CNC milled inside our facility
from the starting stock
to the end shape

Ergal 7075 aluminum guarantees performance similar to that offered by carbon steel at a fraction of the weight.
For this reason it is used on high performance automotive, aerospace and robotics industry

AL 6082 - High quality aluminum

Tensile Strength [MPa]

AL 2017 - Avional - Aircraft grade aluminum

Brinnell Hardness

Fatigue Strength [MPa]

AL 7075 - Ergal - High resistance aerospace grade aluminum

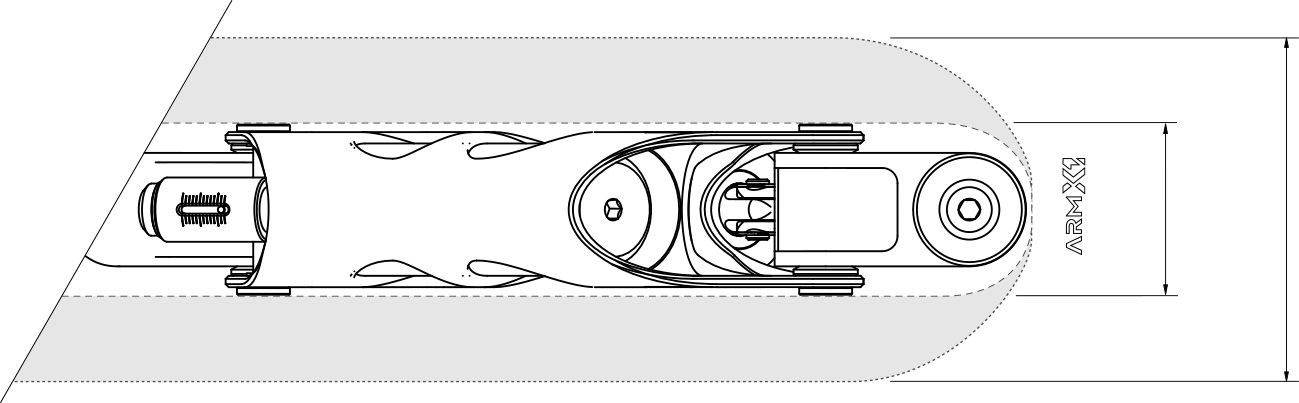

Special alloys can lead to special dimensions.
Arm X1 is currently the slimmest arm on the market with an outstanding load capabilities

up to 50% narrower compared
to other systems

only 45mm / 1.77"

The use of compression springs
and the unique leverism obtained with
XTune led us to embrace the power
of the springs inside the canisters...

The result is a design that give to you plenty of space
between canisters so no more accidentally stuck clothes, cables and you know.... fingers!

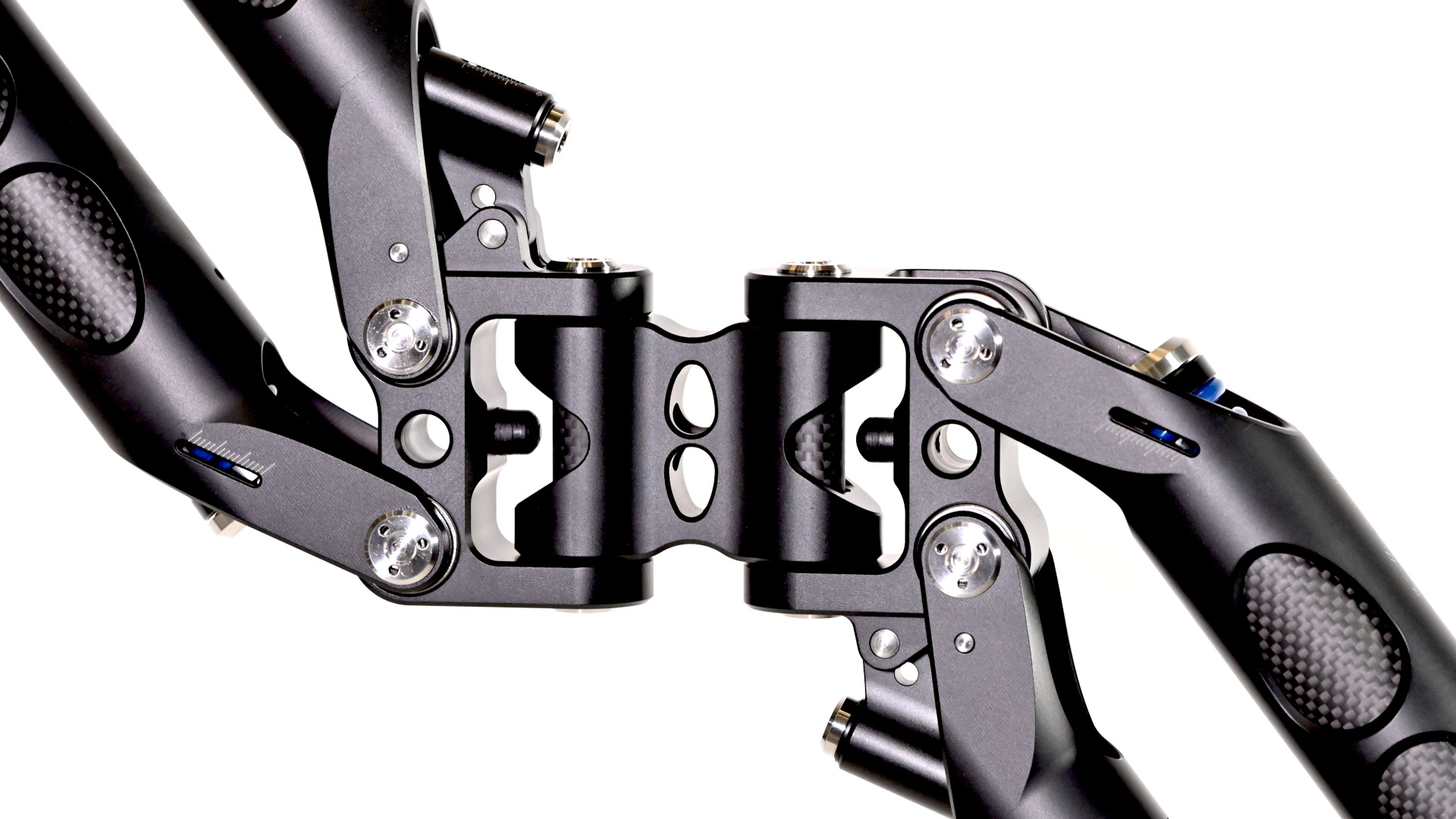

Tons of features within an unique design

The set life is frantic and setting up an arm for a new load could be time consuming,
especially when the new setup is dramatically different respect to the previous shot...

Different design, different approach to

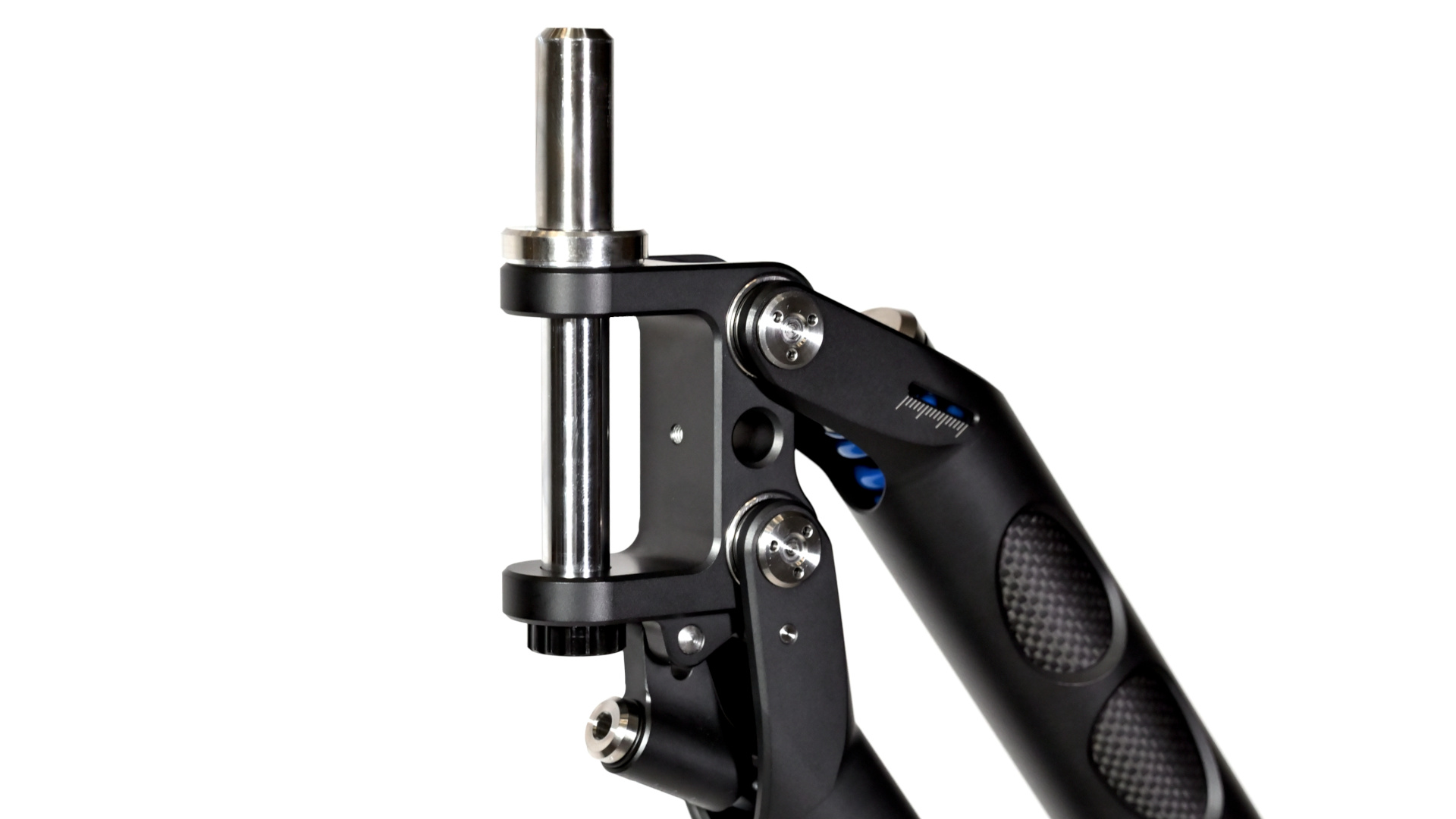

problems... like the Arm post system,
thought to be reliable and rigid with
plenty of options available

Based on industry standard
mating block with a specific attention
to right-handed or left-handed operators
as well as front mount and backmount vest.

Changing from standard or goofy operation is super easy :

Mathematically speaking, the best answer that a system can give
to an external stimulus is what is called "Critically damped" one.
The tricky part is this answer is strictly connected to the load
applied and to the "force" of the springs used to counterbalance
that load. So the question is : How can I get that?

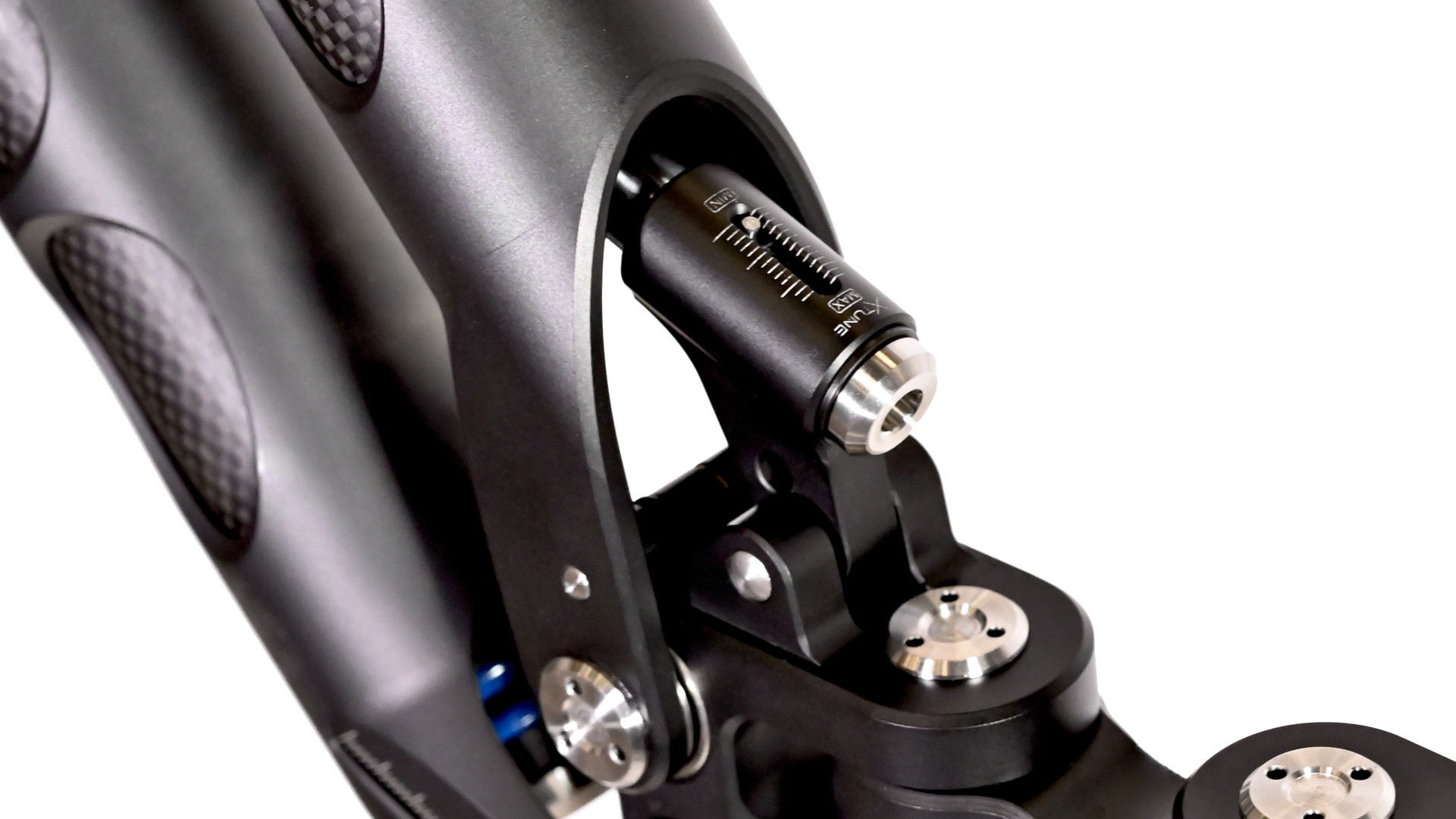

The patented design of XTune, let you tune your ArmX1 to answer
exactly as you prefer interacting as a "selective multiplier" of the
force of the springs installed.

From super smooth to very responsive... you have the control!

Not in this case :

the exclusive Patent Pending Technology that dynamically change and adapt the overall elastic response of the installed springs
all over the boom range ensuring an extremely soft operation.

Since March 2021, all the ArmX1 will be equipped with

728mm / 28.5"

4 springs setup

lbs

2 springs setup

Ranging from 6kg (13.2lbs) up to 34kg (74.9lbs), you can definitely fly your current or future setup .

4 Spring installed

ArmX1 Total Weight

4.5

2 Springs setup

Bare Structure

9.92

4.0

3.5

7.71

8.82

Despite the tiny dimensions, Arm X1 can lift
32kg ( 70.4 lbs) with an ultimate
maximum payload of 34kg (74.9 lbs).

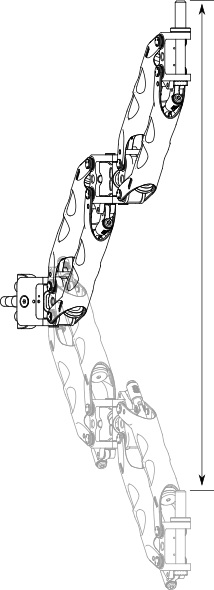

The maximum boom range is 728mm (28.5")

Boom range, weight and load capabilities

Configuration

Learn More...

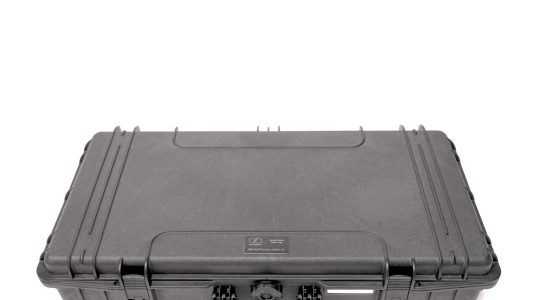

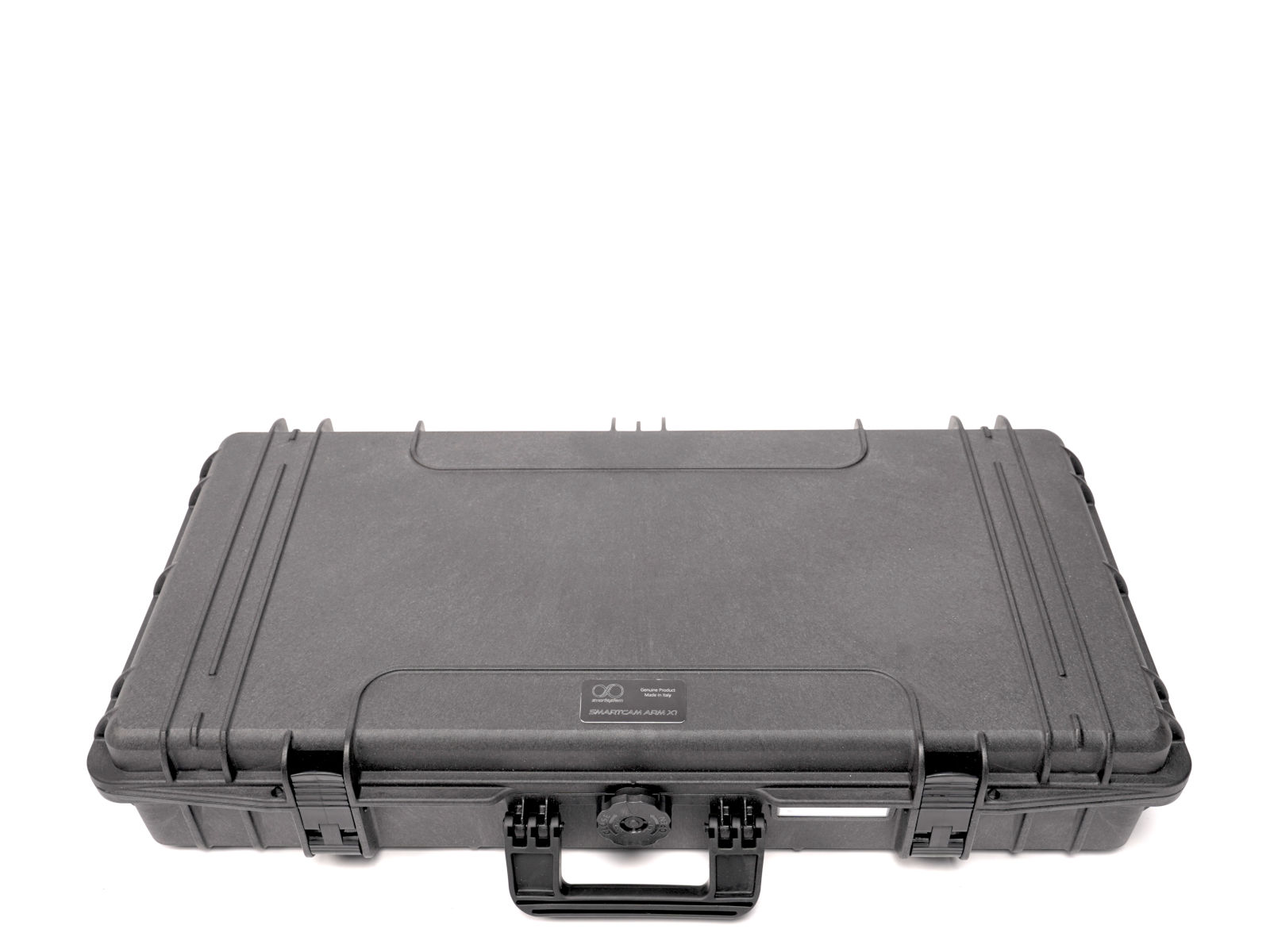

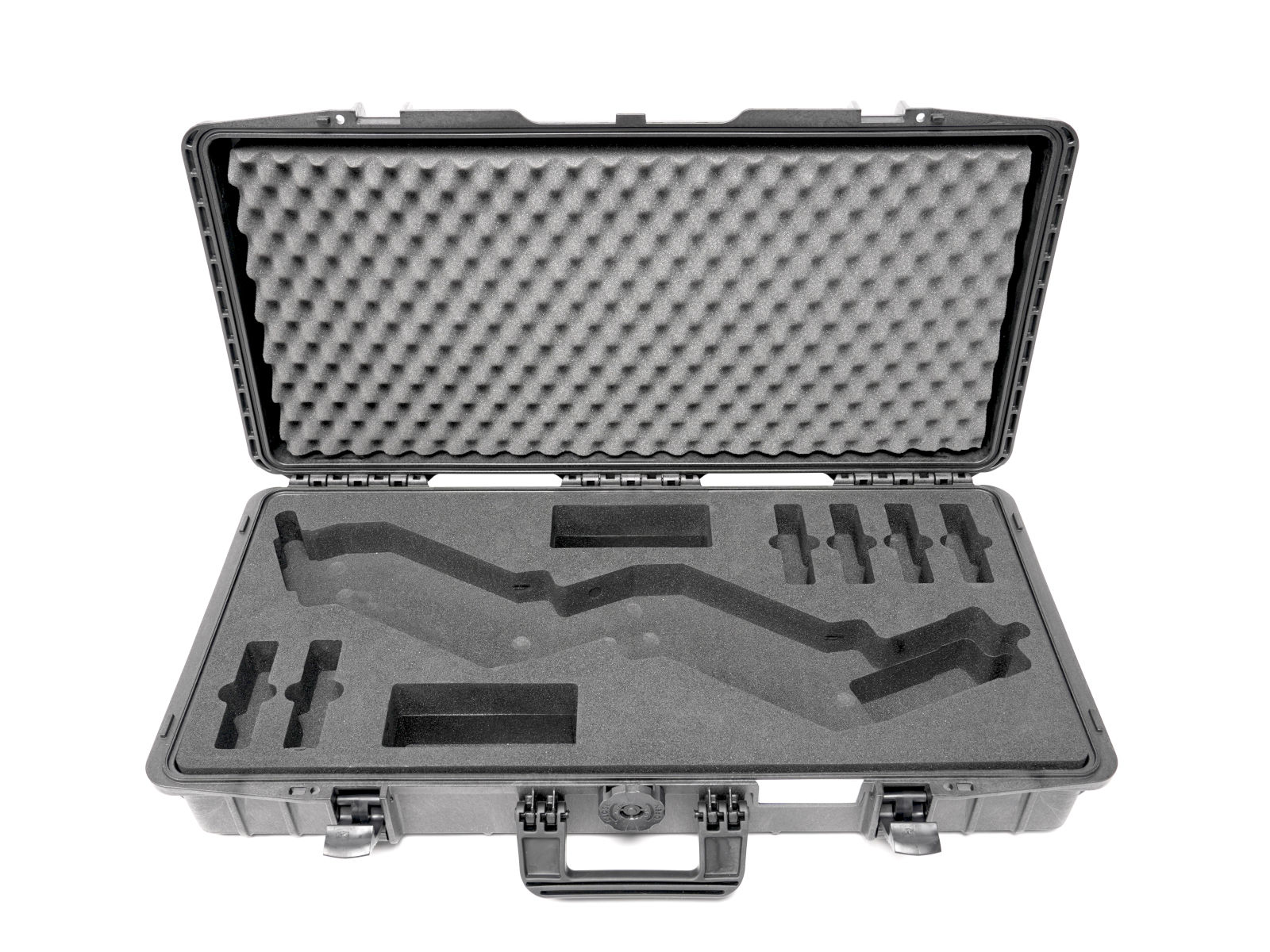

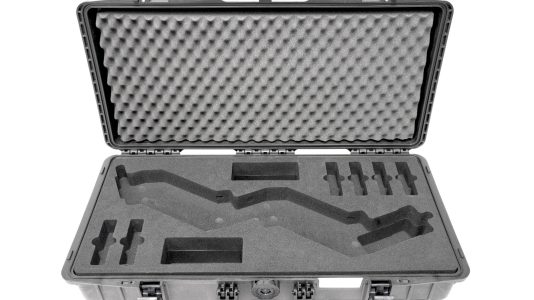

The suitable protection for a valuable product

A custom resin case with Military specs like
DEF STAN 81-41 / STANAG 4280,
ATA300 and IP67 is included to carry safely,
on your next adventure, your brand new Arm X1

Rain Suit

Total protection even under heavy rain

With zippers to grant access to all the
springs and XTUNE even with the sleeve installed

NOTE: Rain Cover and Rain Suit are separate accessories

Rain Cover

Heavy Rain, dust or simply preserve for many years

Choose between two level of protection

Do you want to upgrade your existing ArmX1 with this new product?
Contact us!

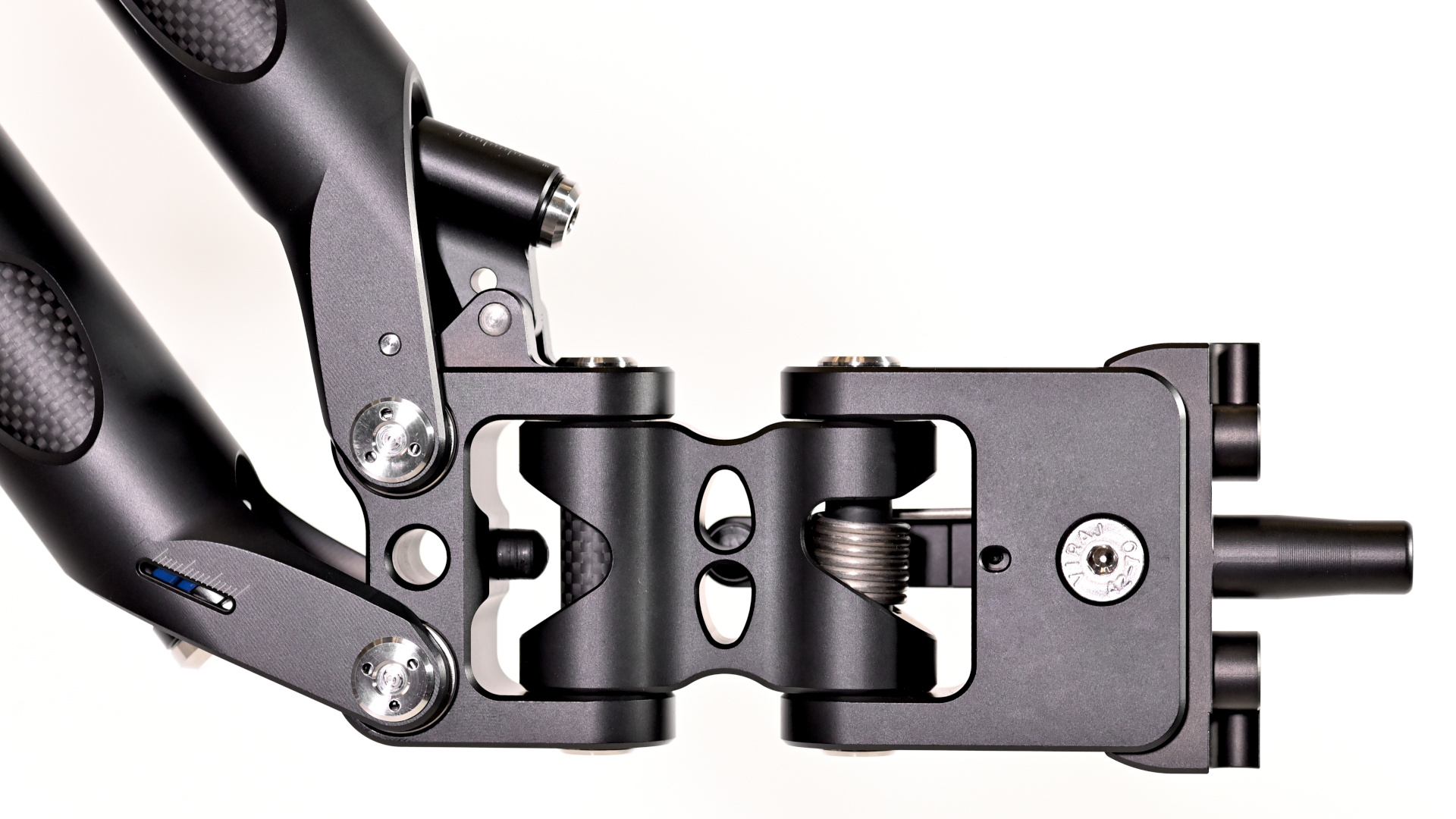

Our continuous research in this field led us to offer, as standard,
a new Mating Block based on a special stainless steel alloy

Stainless Steel Mating now as standard

Material technology is always looking for new alloys capable of improving machinability
by equaling if not improving the mechanical performance of existing materials.

ArmX1

Name: ArmX1
SKU: 000002418
Price: 9449.95 USD
Availability: InStock

US $ 9,449.95

EURO Price includes local VAT for European customers without a valid VAT number.
Foreign currencies are already tax-free. Customs fees not included.

SKU: 000002418
EAN: 8051411190172

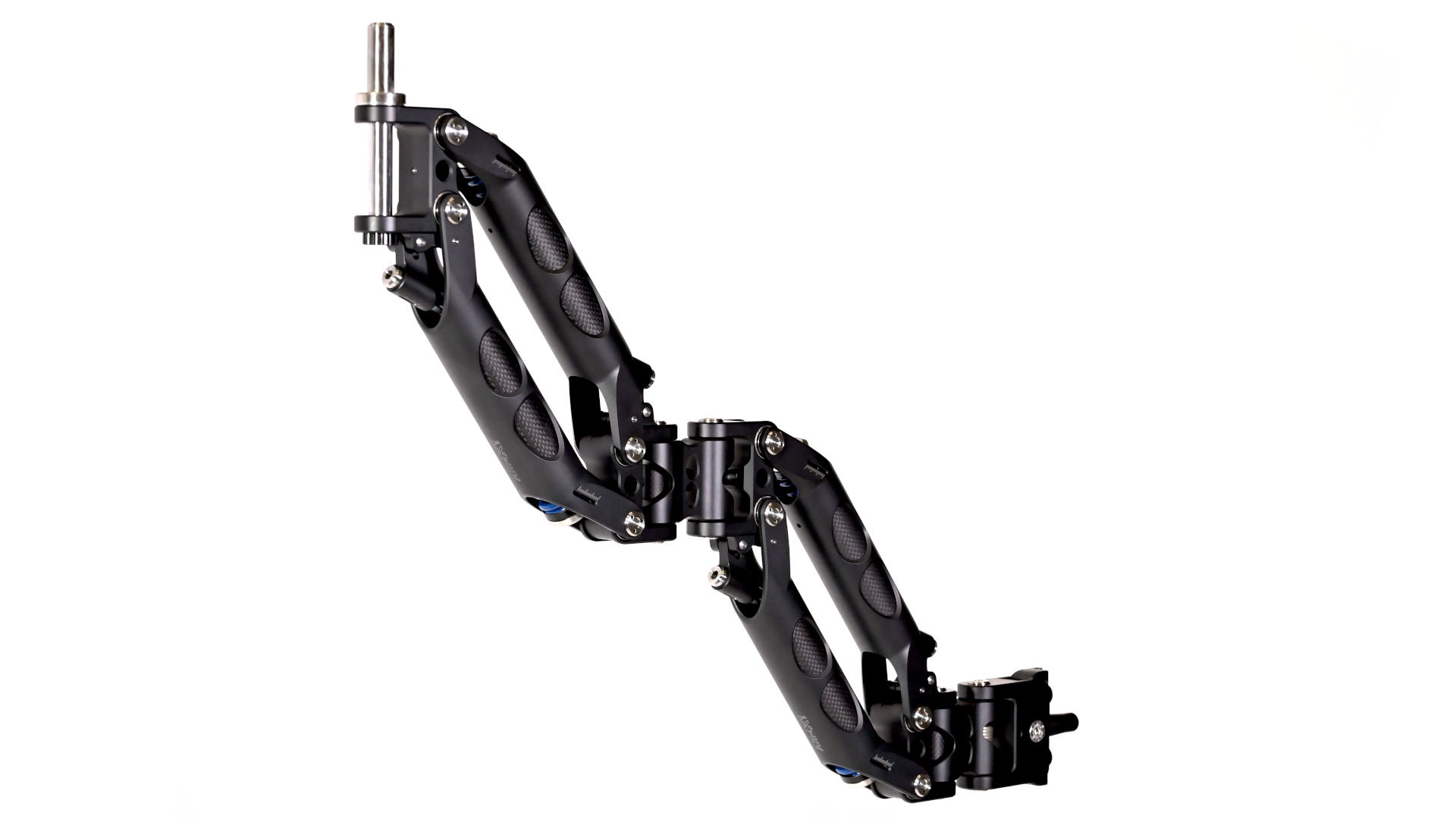

Double section articulated stabilization arm with an ultimate payload of 34kg (74.9lbs) based on an exclusive Patented Design.
Extremely light and compact: it’s one of the smallest and lightest stabilizer arm in the market (only 45mm / 1.77″of width)
Exclusive X-Tune system allows the operator to set up Arm X1 to obtain the correct dynamic response for its needs.
Completely milled from highest quality Ergal 7075 aluminum, shot peened and hard anodized for ultimate strength and lightness (only 4.5kg / 9.92lbs in its heavier configuration).
Equipped with Patent Pending DynaSpring Technology that dynamically adapt the answer of the springs all over the boom range
Perfectly compatible with every type of professional stabilizer Vest or Sled on the market.

IN THE BOX

1x ArmX1 equipped with DynaSpring
1x Standard 5/8″ arm post (click here for additional Arm Posts)
1x Standard Ergal 7075 mating block
4x Blue Springs
4x Black Springs
1x Hard case
1x Allen Key #5 for Spring Preload and XTune
1x Allen Key #3 for Arm Post friction tuning

In stock (can be backordered)

ArmX1

IN THE BOX

Related products

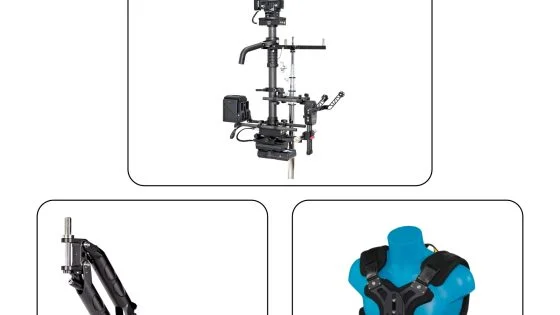

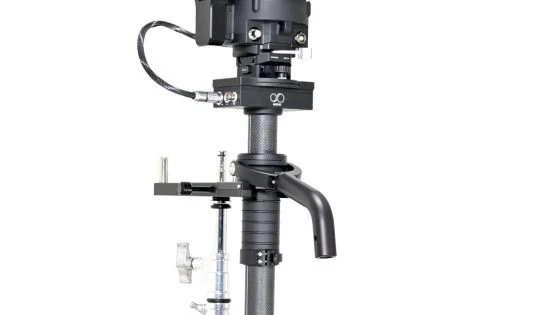

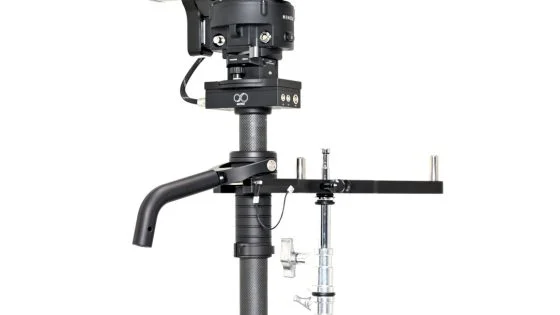

Matrix Sled R2
